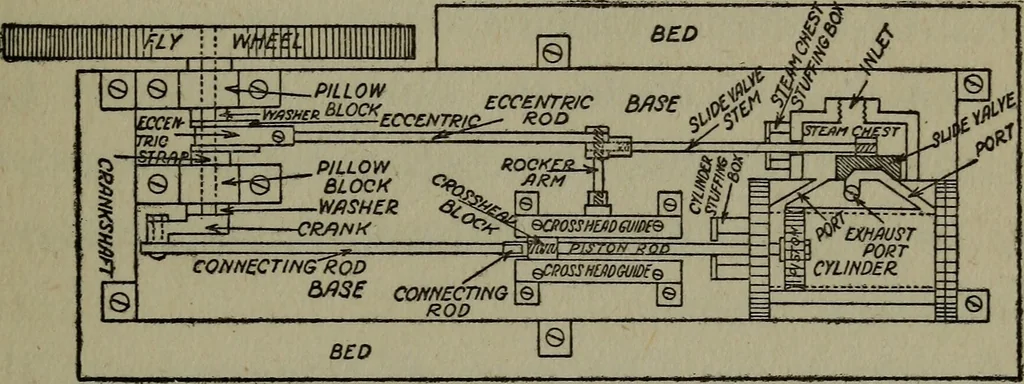

e rough with a %-inch face and 5 inches indiameter for 25 cents. If you want to make a pattern and have itcast, so much the better, but you must expect to A V24-H. P. Horizontal Steam Engine Ji spend a lot of time on it. Make it with sixspokes and saw it out with your scroll saw. The Pillow… … Fig. 33 A. Top View of the Engine with Cylinder and SteamChest in Cross Section shape shown at J. Have the base % inch thickand the bearing %6 inch thick, V2 inch wide and %inch long and make the cover the same size andcast them separately. The Bed Plate.—This is the plate to which thecylinder and…
