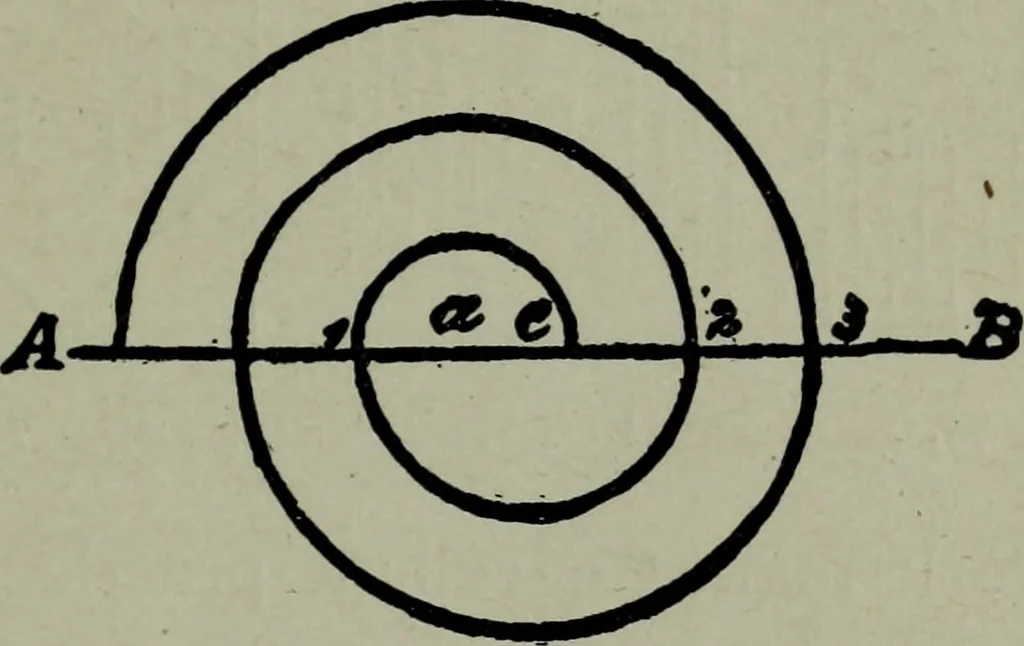

b-ing is simple. Take ai as radius and describe AllCHlf ECttfRAL DRAWING SELF TAUGHT ^5 a semicircle; then take ei and describe semi-circle 12 on the lower side of the line AB. Thenwith a2 as radius describe semicircle below theline AB; lastly with a3 as radius describe semi-circle above the line… … Fig. 75. to his profession as a builder and workman, sonow I will offer a few pages on straight linework. LINE WORK In previous pages I gave a few suggestionsregarding line work done with the ruling pen,and I now supplement them by submitting thefollowing examples numbered from Fig. 76 to78…
