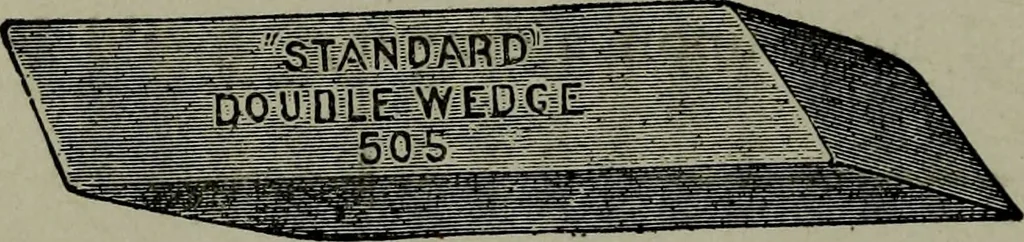

h at the first attempt, but not to drawit beyond the distance it is known to be wanted. 98 ARCHITECTURAL DRAWING SELF TAUGHT An unnecessary line takes time to draw, wastesthe pencil point, and takes time to rub out; allmatters of moment when excellence is in view.Of course, all corrections must be… … Fig. 92. When a drawing is completed, the pencil linesmay be erased by using a proper rubber similarto that shown at Fig. 92, which can be pur-chased for a few cents. Some of these erasersare made so that one end of them is speciallydevised for rubbing out pencil lines while theother end is…
