Builder's architectural drawing self-taught : containing descriptions of drawing instruments and accessories, with rules for using them, and hints as to their care and management ... (1903)
Hodgson, Fred. T. (Frederick Thomas), 1836-1919 · Chicago : F.J. Drake & Co. · leaf 137

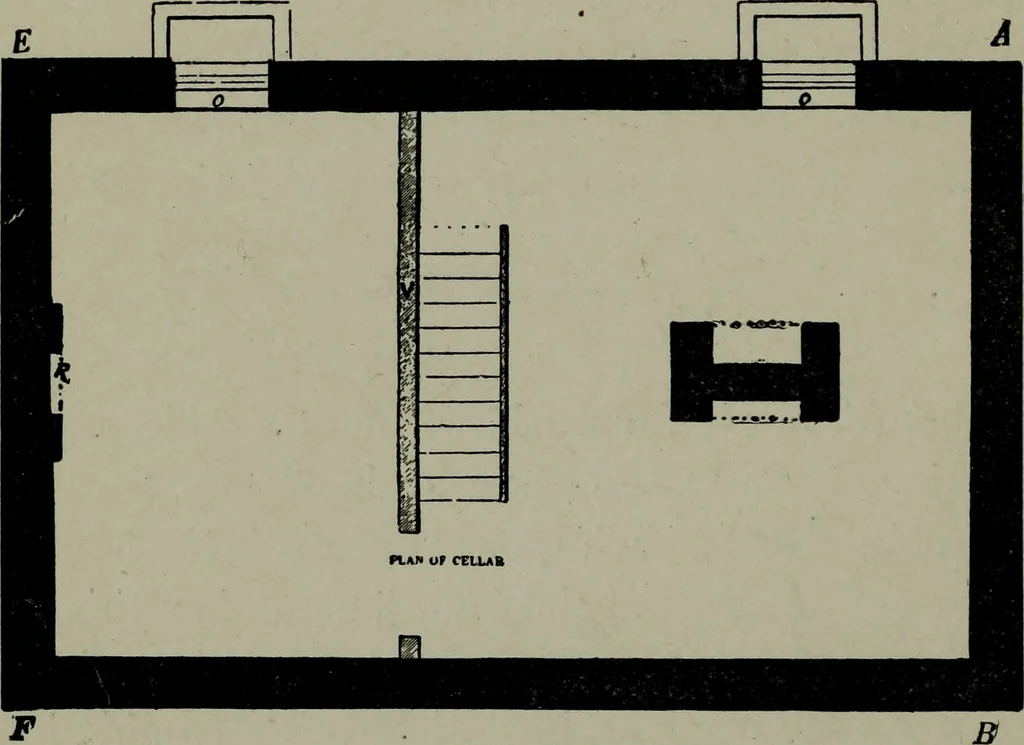

il line from your left hand across the papernear the lower edge of the board. From thisline, draw another at a convenient point at rightangles to the first line. Make these lines with a 108 ARCHITECTURAL DRAWING SELF tAtJGHl^ fine pointed HB pencil, and so light that theymay be easily erased. From… … Fig. 100. Cellar Plan. distance of 4.Ji inches, which contains 19 quarterinches and one % of an inch. The 19 quarterinches represent 19 feet on scale, and the }i ofan inch represents 6 inches, thus, making thetotal distance between E and F, 19 feet and 6inches. Square over from E to A, and the…
Architectural drawing
