Builder's architectural drawing self-taught : containing descriptions of drawing instruments and accessories, with rules for using them, and hints as to their care and management ... (1903)
Hodgson, Fred. T. (Frederick Thomas), 1836-1919 · Chicago : F.J. Drake & Co. · leaf 146

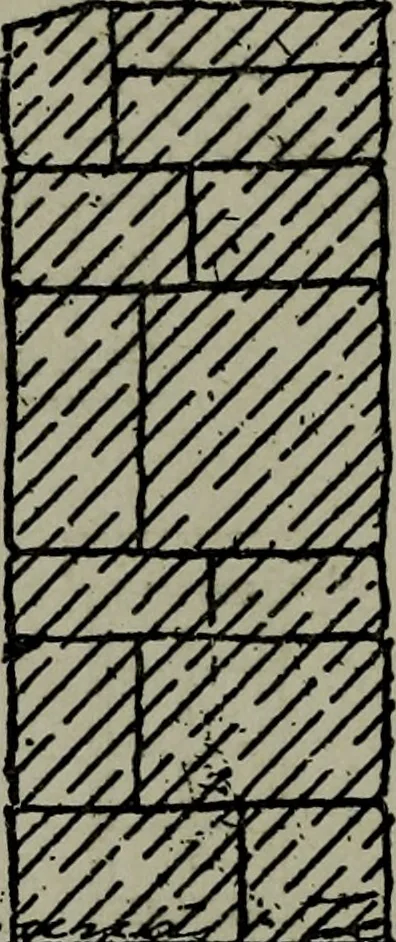

-^^ … ■yx^< ■ Fig. 105. Fig. 106. winders. The windows are norso wide as thosein the stories below, only being 2 ft. 3 in. in theopenings. Measure off the rooms as they arefigured, making the partitions of 2x4 in. studs,and marking off the newel and rail for stairs asshown. The elevation shown at Fig.…
Architectural drawing
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
