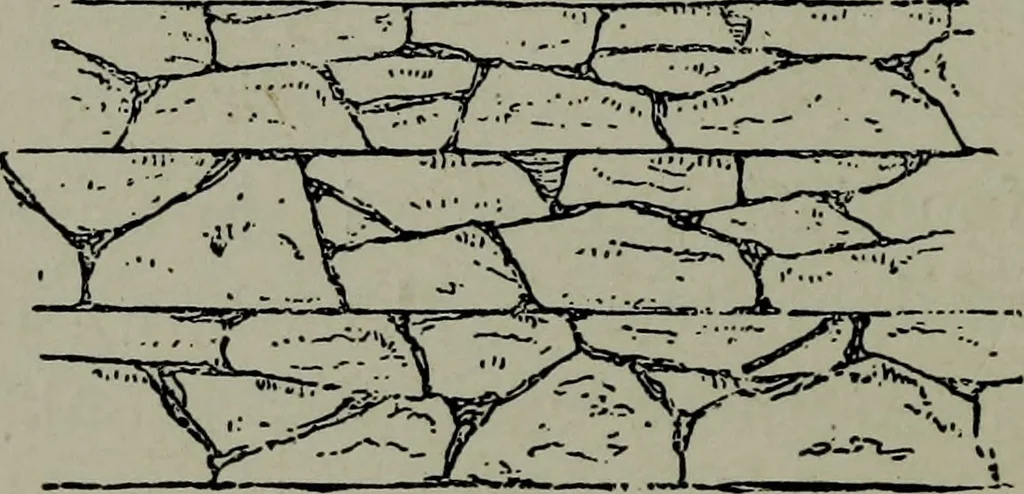

the brick partitionrunning through thecellar of the cottagewe have just dis-cussed. Here is aflat stone footingwith three courses ofbricks on top before Fig. 108. cellar floor whether it be plank or cement. Whenthe whole foundation and wall are to be of stone,the student may lay it off in… … Fig. 109. This shows a section of the wall, through B, at Fig.107. Coursed rubble work is shown at Fig. 108,while random rubble work is shown at Fig. 109. 4.RCHITECtURA.L DRAWING SELF TAUGHt ll-r In this style of masonry, the wall is brought to alevel throughout its length at about every 12 or14…
