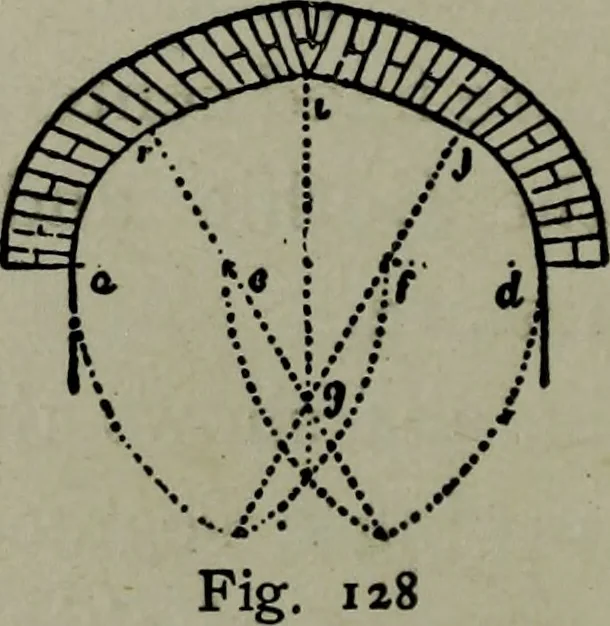

V Fig. 127 Tudor arch. It is struck from three centers asshown. It is sometimes called an ellipticalGothic arch, and may be struck as follows: ARCHITECTURAL DRAWING SELF TAUGHT 13S Divide the span, ad, Fig. 128, into three equalparts by the points, ef. From a, with radius a, J,describe an arc, and…
