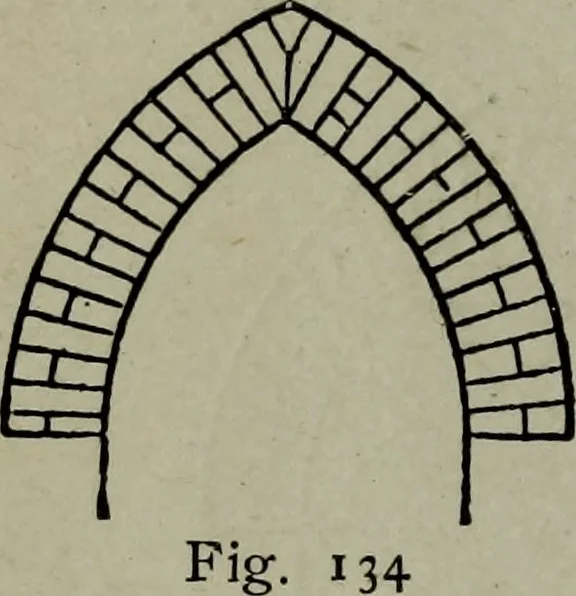

hose in the upper portion of the arch to theintersection of the two inner lines at B, wherebythe bricks at the crown are eased off. Inpointed or two-centered arches, other thanequilateral, the same method may be followed,the angles of the dotted lines being greater orless as the circumstances of… … ARCHITECTURAL DRAWING SELF TAUGHT 137
