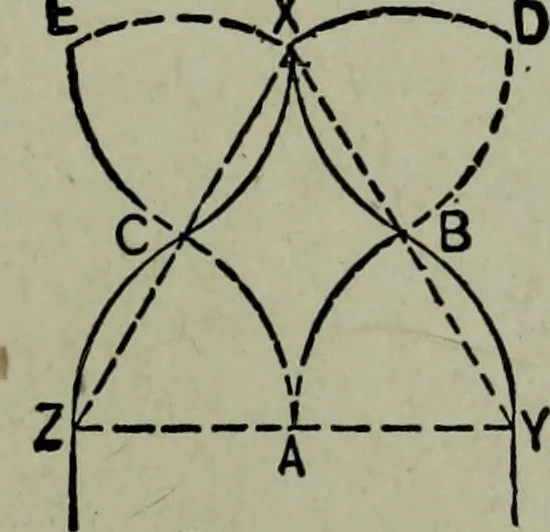

mples of which are the seg-mental, or two-centered, and the Tudor, orfour-centered, arches. To describe an equilateral ogee arch, likeFig. 136, proceed as follows: Make YZ thegiven span; make YX equal YZ, bisect YZ in A;on A as center, with A Y as ra-dius, describe the arcs Y B andZ C; on B and X… … Fig. 136. 138 ARCHITECTURAL DRAWING SELF TAUGHT
