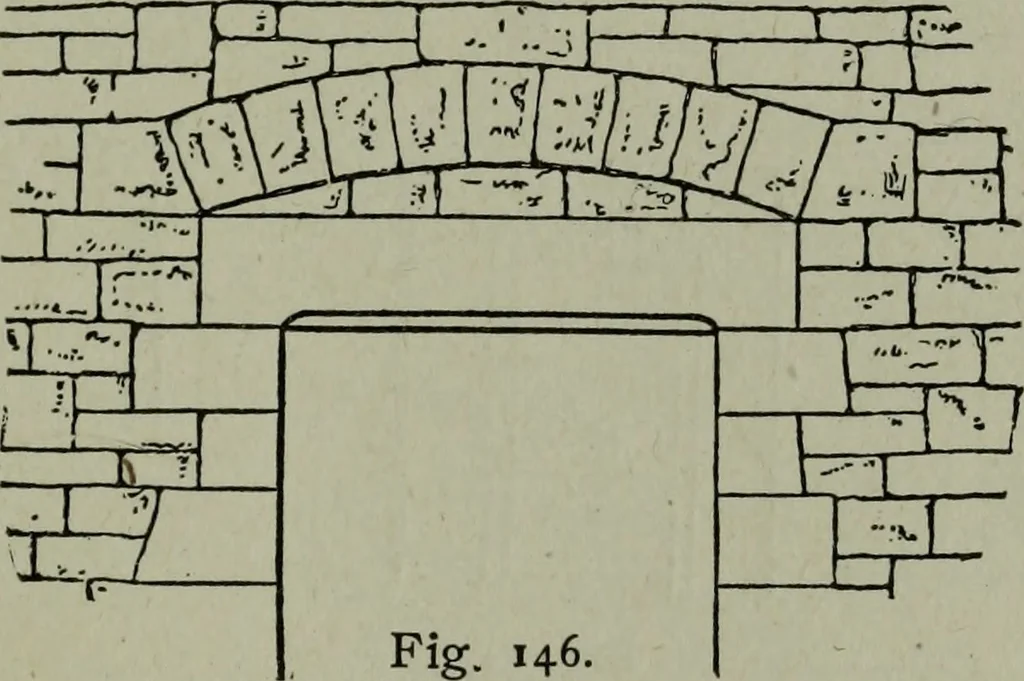

Fig. 145- weight over to the jambs. The face of thewindow is all of dressed stone, while the wallsare formed of irregular stones. … Another style of work is shown at Fig. 146,where the walls are formed of square stones laid 146 ARCHITECTURAL DRAWING SELF TAUGHT r7\ _i^L (0% /f^w^ ^^7W -J
