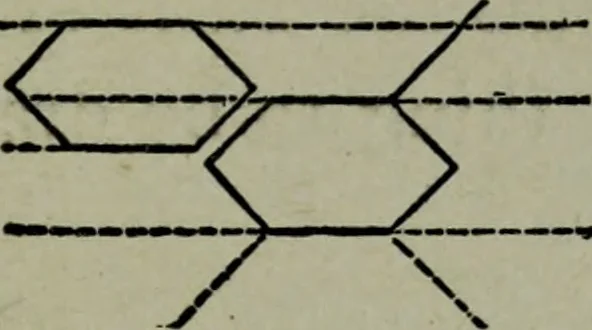

Fig. 174. each other, the distances being shown at i h g. Another illustration of a square being set diagonally is shown at Fig. 174, which illustrates ARCHITECTURAL DRAWING SELF TAUGHT 167 an open balustrade In Gothic style. The studentshould have no difficutly whatever in laying thisdiagram off,… … ^=0 Fig. 175. Fig. 176. six sides, which Is often employed In decorationand in Gothic architecture. The manner of lay-ing it out is shown in Fig. 175, and completedfigures are shown at Fig. 176.
