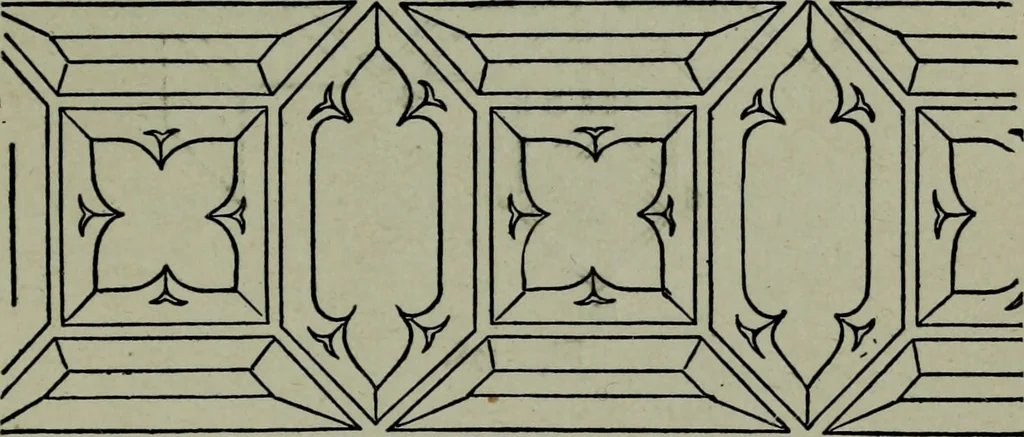

^=0 Fig. 175. Fig. 176. six sides, which Is often employed In decorationand in Gothic architecture. The manner of lay-ing it out is shown in Fig. 175, and completedfigures are shown at Fig. 176. … Fig. 177. The same figure In conjunction with the squareis shown In finished work at Fig. 177. Thisrepresents a perforated balustrade or parapet;the curved lines are obtained by the compass,centers being easily found. I6B ARCHITECTURAL DRAWING SELF TAUGHT A Still more complicated figure is shown…
