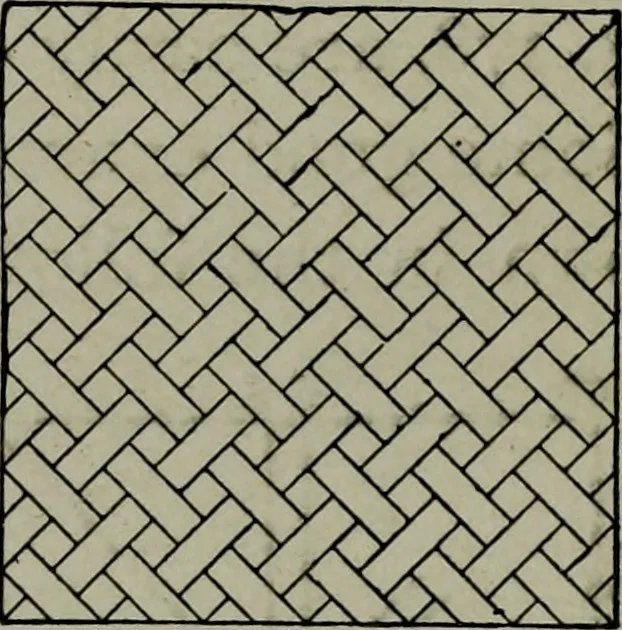

Fig. 181, Fig. 182. termed a basket pattern and is formed of inter-lacing straps. This pattern is an exceedinglygood one for exercise, as it is composed of shortlines and requires careful work to prevent over-lapping, which would spoil the work. In startingand ending a line, endeavor to have the…
