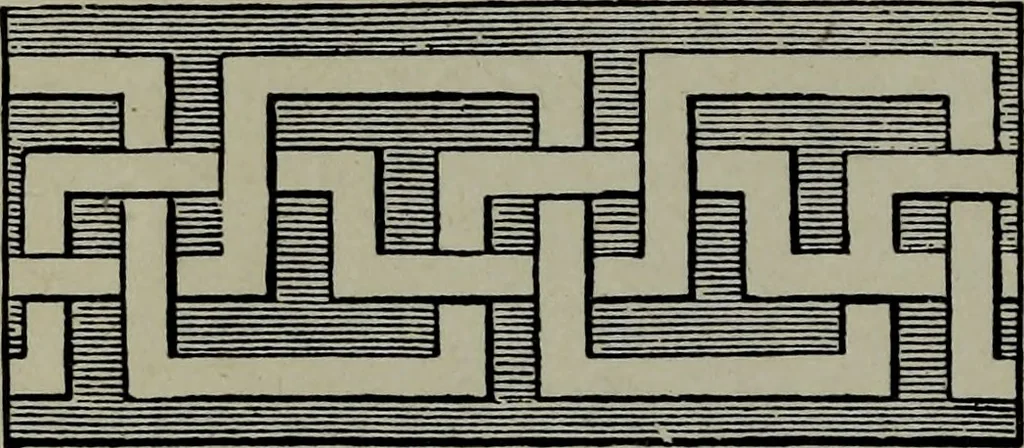

good one to follow for practice. Fig. 184 is a modifica-tion of the same orna-ment, a quarter circle be-ing used on all externalangles instead of havingthe lines join with a rightangle. In other words, the ornament is a com-bination of curves and straight lines. Copy these examples four or five… … Fig. 18 6. purely Greek examples, the first being thesimplest form of running Greek fret. Its con-struction is very simple and easy, and may be reproduced with aT and set squares3 alone. Fig. 185 isJ : constructed nearlyin the same man-ner, there beingtwo more anglesin the latter than the former.…
