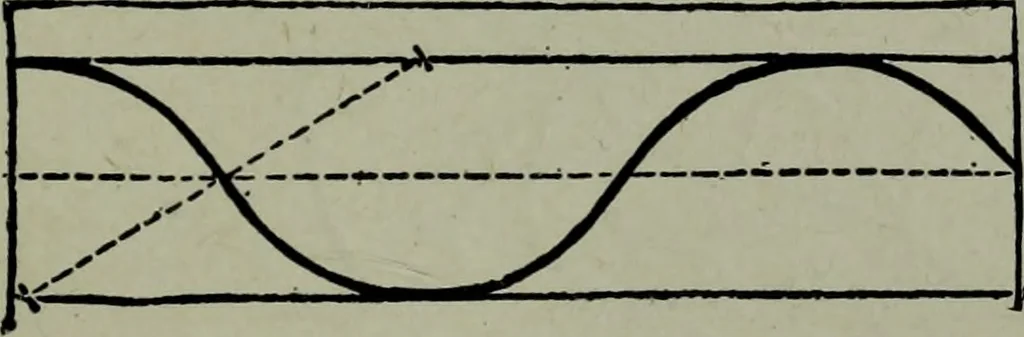

lding are found. The last three examples are of a purelypractical kind, and their determination suggestsmany other forms which will doubtless appealto the students imagination. The ornament shown at Fig. 193 is called aGuillochey or chain, and is formed by concentric circles overlappingeach other.… … Fig. 194. 178 ARCHITECTURAL DRAWING SELF TAUGHT They are, In fact, the cyma recta repeated, the depth being lessened in Fig. 195. Fig. 196 Is a study of the elementary lines of a running scroll, formed of the wave-line, with the addition of spirals.Care must be takenin drawing these spi-rals, so…
