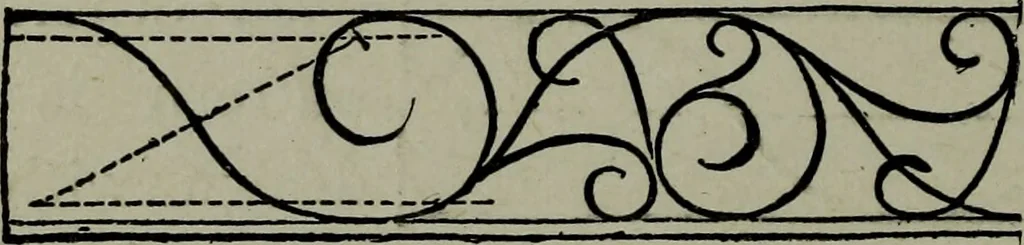

Fig. 196. if the stem beyond the spiral were removed thescroll would be perfect, and that if the scroll were … Fig. 197. taken away the wave-line would remain unin-*jured. This should also be the case In Fig. 197,in which tendrils are added to the scrolls. ARCHITECTURAL DRAWING SELF TAUGHT 179 Fig. 198 is a further elaboration of the samedesign, the lines being doubled. Fig. 199 is another simple running…
