Builder's architectural drawing self-taught : containing descriptions of drawing instruments and accessories, with rules for using them, and hints as to their care and management ... (1903)
Hodgson, Fred. T. (Frederick Thomas), 1836-1919 · Chicago : F.J. Drake & Co. · leaf 229

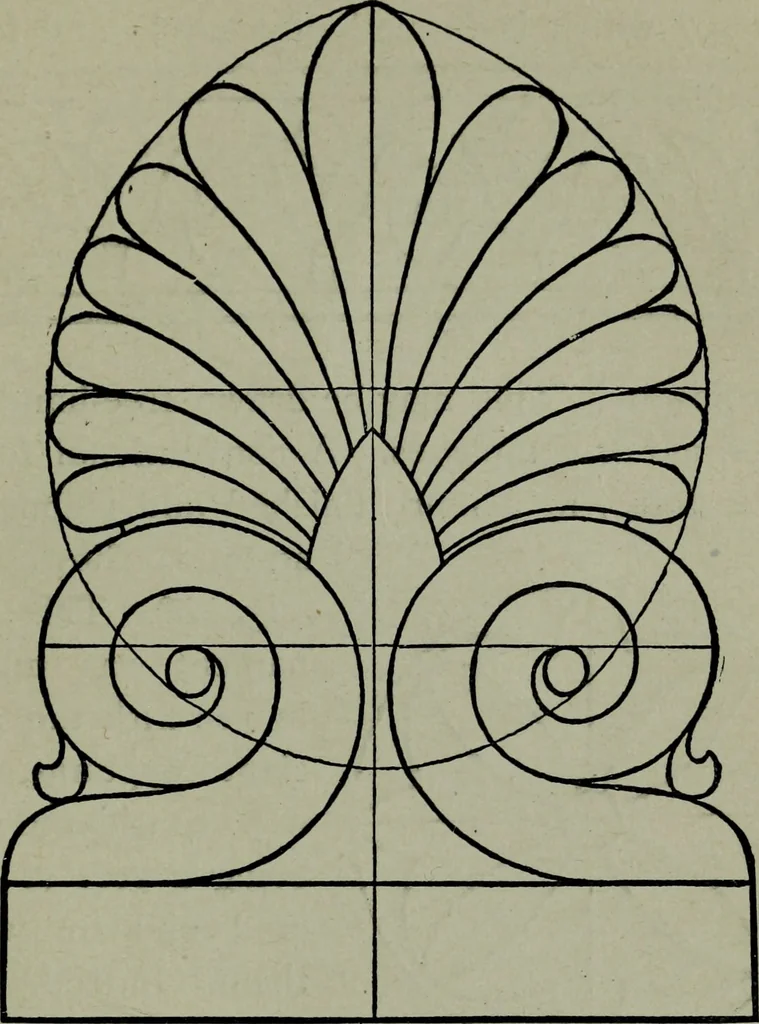

Fig. 204. be turned in a lathe and then split in two orquartered. Fig. 204 shows the Greek conventional lilyform. It has a faint resemblance to theEgyptian lotus, but has a Grecian delicacyabout it that is absent in Egyptian forms. The ornament shown in Fig. 205 is the Greek ARCHITECTURAL DRAWING… … -^ Fig. 205. The border shown at Fig. 206 is pure!};Egyptian, and is partly made up of the openlotus flower and the bud. This is a very 186 ARCHITECTURAL DRAWING SELF TAtTGHf common ornament for stenciling, incised workand low relief carving. A circular or rosette ornament is shown atFig. 207 which…
Architectural drawing
