Builder's architectural drawing self-taught : containing descriptions of drawing instruments and accessories, with rules for using them, and hints as to their care and management ... (1903)
Hodgson, Fred. T. (Frederick Thomas), 1836-1919 · Chicago : F.J. Drake & Co. · leaf 233

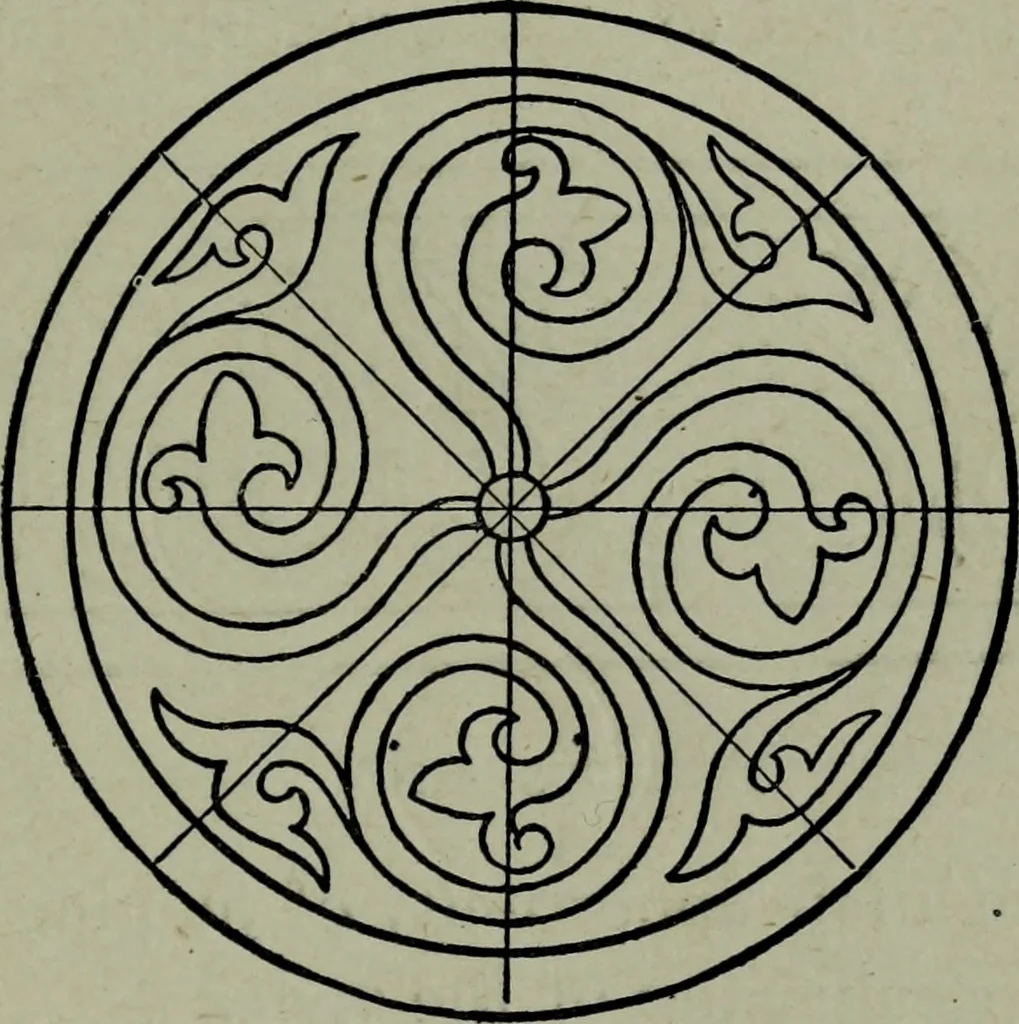

i Fig. 21 I. The scroll border shown at Fig. 211 is of theByzantine style of architecture, and is quite … i Fig. 212. effective in its way The rosette shown in Fig.212 is also of that style and offers good practiceto the student. These latter examples are taken mostly from 190 ARCHITECTURAL DRAWING SELF TAUGHT classic executed work, and while they onlytouch the fringe of classic ornament, they will,to…
Architectural drawing
