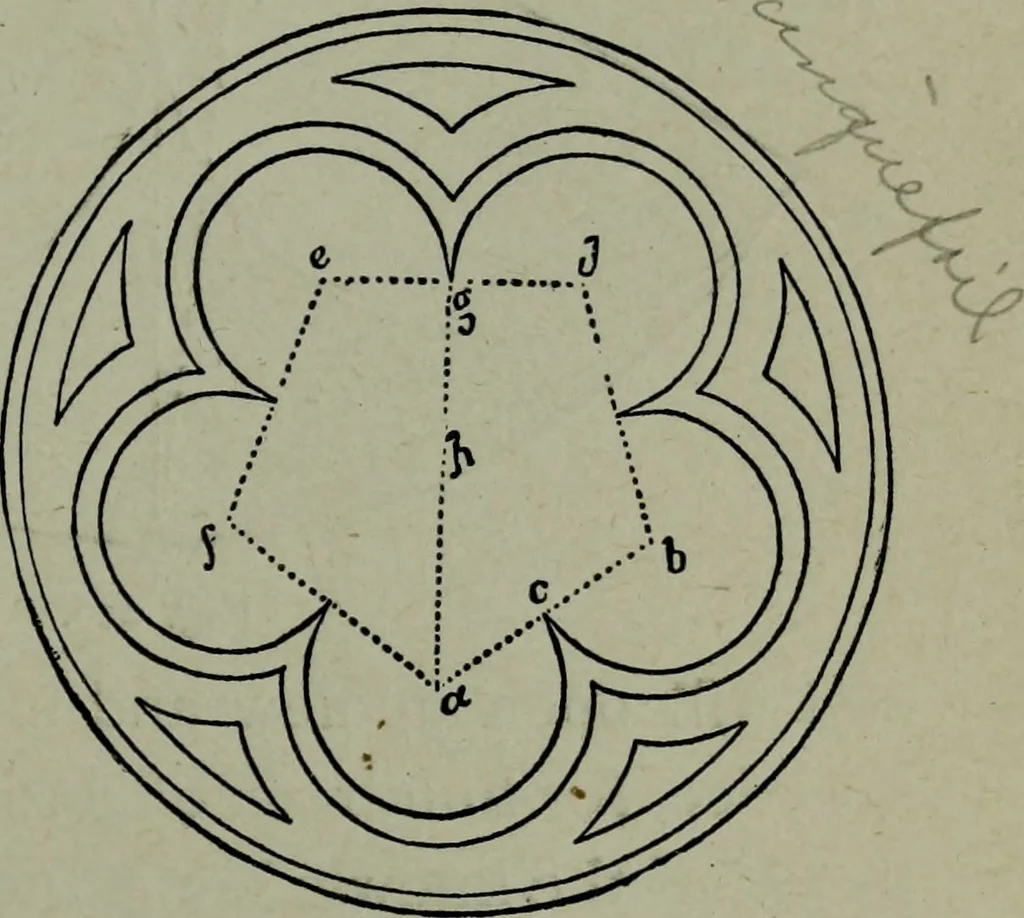

tagon, a b, d e f; by dividingpoint g, and draw-ing a line froma to it, cutting theperpendicular e cin h, the center nis the point fromwhich the sur-rounding circlesare drawn. Theother parts of thisornament areeasily drawn. surrounding circles,the diagonals, a b,c d, of the square;the curves, s s s… … Fig. 216. 194 ARCHITECTURAL DRAWING SELF TAUGHT Two more examples, and then I have finishedin this style, but these are elaborate and will,doubtless, try the skill and patience of the stu-dent, but the results will well repay for the labor,
