Builder's architectural drawing self-taught : containing descriptions of drawing instruments and accessories, with rules for using them, and hints as to their care and management ... (1903)
Hodgson, Fred. T. (Frederick Thomas), 1836-1919 · Chicago : F.J. Drake & Co. · leaf 259

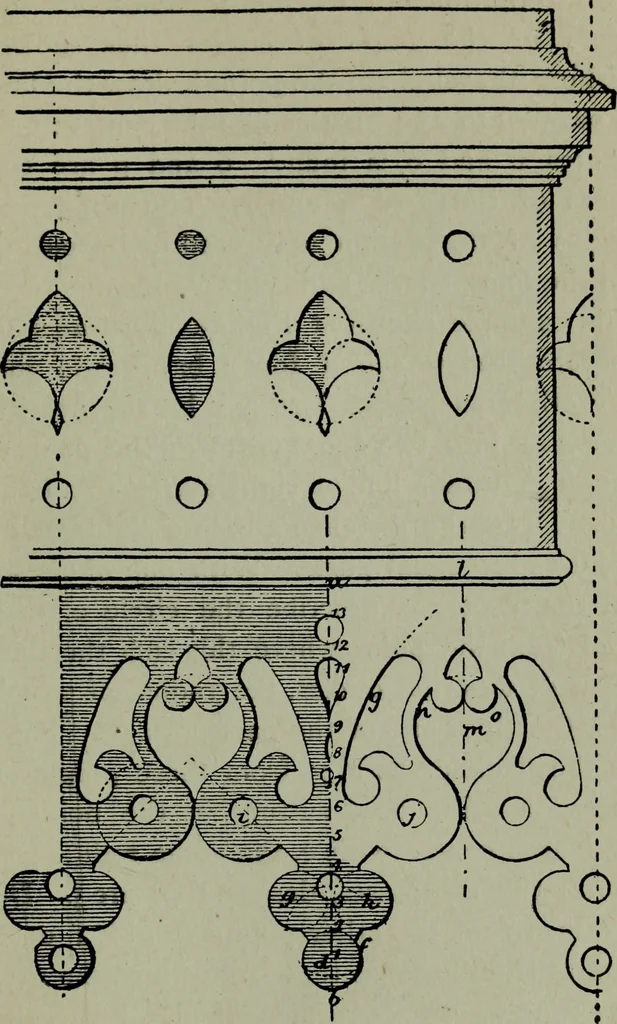

>^ ARCHITECTURAL DRAWING SELF TAUGHT 209 … Fig. az9. 210 ARCHITECTURAL DRAWING SELF TAUGHT angles to the line e, £, to i and j. These are thecenters of the parts of circles thus shown.Finishing the circle at the point k draw the linek, 1, parallel to a b; on this line the center m, ofthe arcs n and o, is found. 6 and p are thecenters of the…
Architectural drawing
