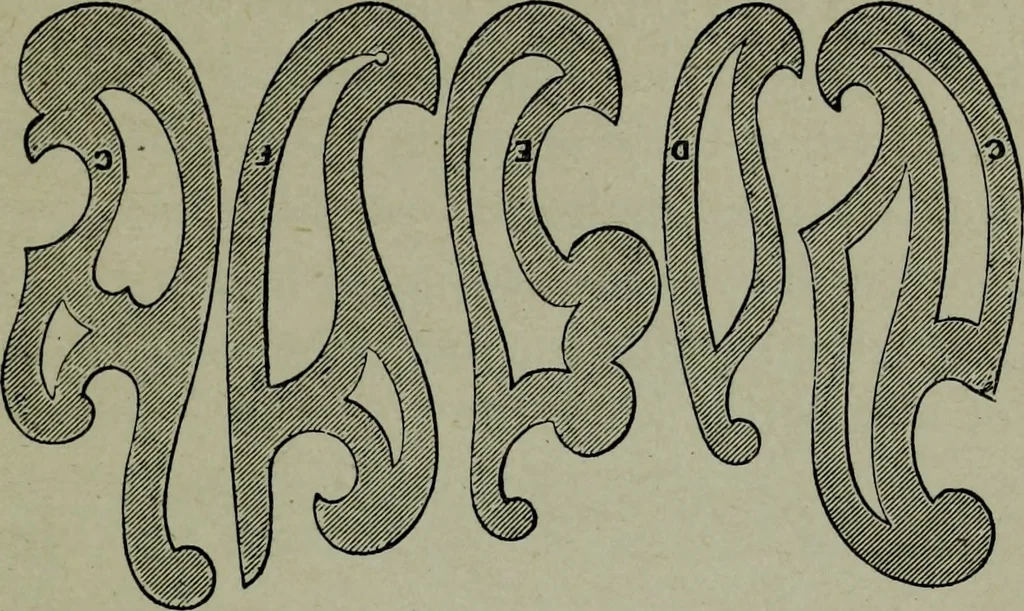

Fig. 9. ARCHITECTURAL DRAWING SELF TAUGHT n The set square or squares, similar to thoseshown at V\g. 9, C, D, K and B, are great aids … Fig. 10. to drawing as they may be employed in conjunc-tion with the T-square, for lining off angles, orlaying off parallel lines as shown by the dottedlines EG, and FH. These set squares are made
