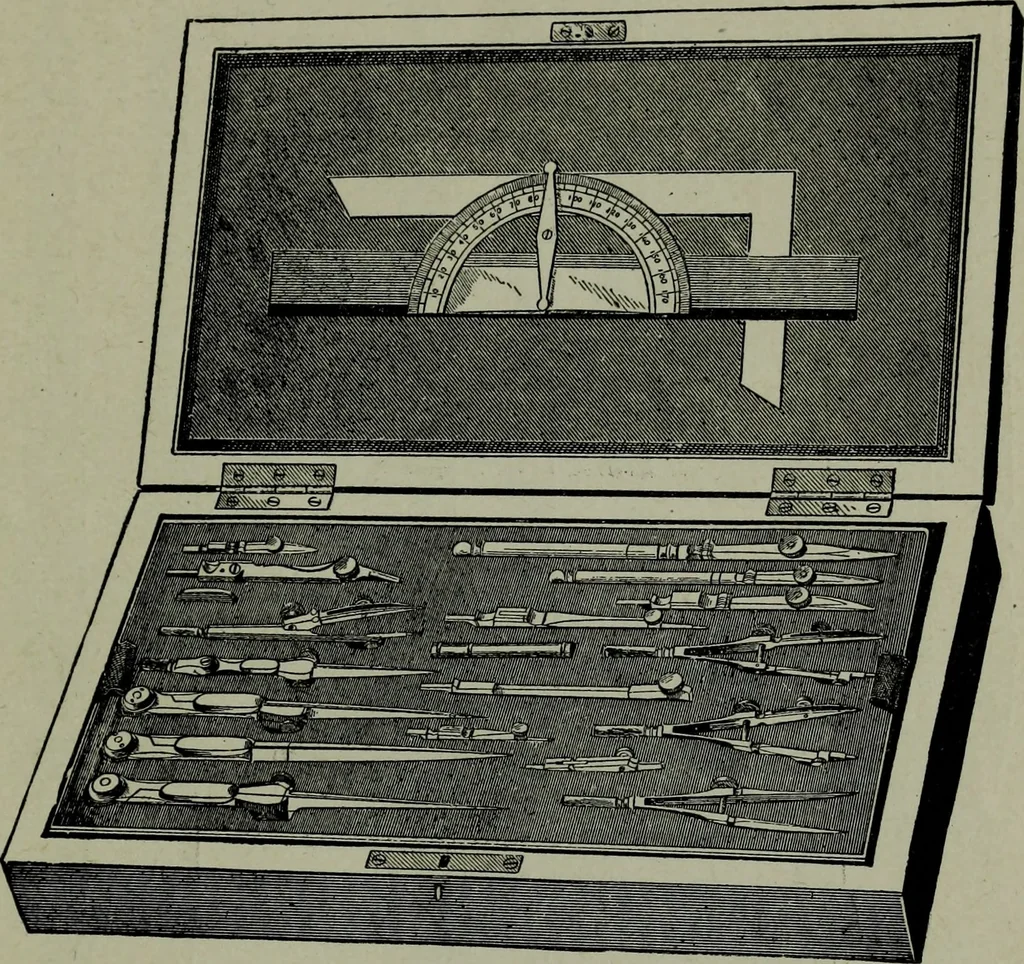

Fig. 19. ARCHITECTURAL DRAWING SELF TAUGHT 37 contains, besides the box, one 5^ in. dividers,with pen, pencil and needle points, lengtheningbar; 3>^ in. dividers, with pen, pencil and needlepoints; 5 in. plain dividers; 5 in. hair spring … Fig. 20. dividers; spring bow dividers, pen and pencil,needle points, ivory handle; 4^ in. ivory handlehinged drawing pen, needle point; ^}4 in. ivoryhandle hinged drawing pen, needle point;German silver protractor, ebony rule and scale. 38 ARCHITECTURAL DRAWING SELF TAUGHT These instruments are…
