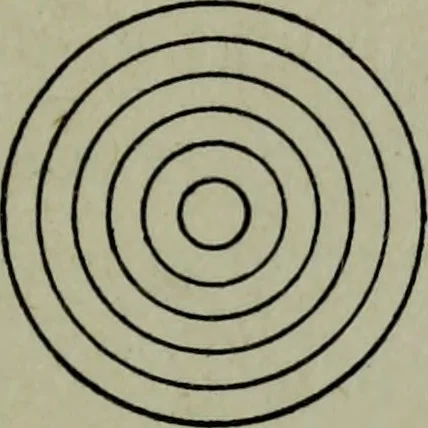

rcurves with greater radius, are, within certainlimits, much easier to describe. The curves*shown at Fig. 32 are flat ones, and well within ARCHlTECTtTRAL DRAWING SELF TAtJGHf B5 the range of the ordinary compass.. The innercurve is dotted and to form this without adotting pen, with any degree of…
