Builder's architectural drawing self-taught : containing descriptions of drawing instruments and accessories, with rules for using them, and hints as to their care and management ... (1903)
Hodgson, Fred. T. (Frederick Thomas), 1836-1919 · Chicago : F.J. Drake & Co. · leaf 75

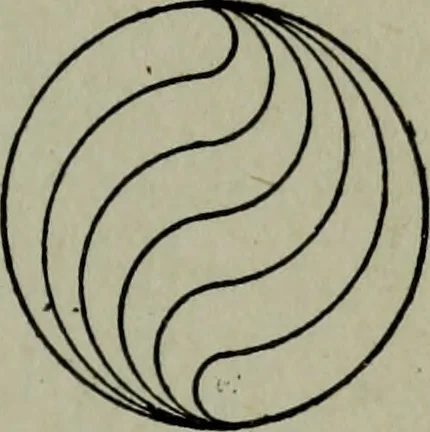

Fig. 33. Fig. 34. Fig. 35- trouble and disappointment. The examples of.circles shown at Figs. 2t3f 34 and 35 offer goodpractice in curve drawing with the compasses.Before drawing them, however, it will be best todraw a pair of center lines for each circle, cuttingeach other at right angles in the…
