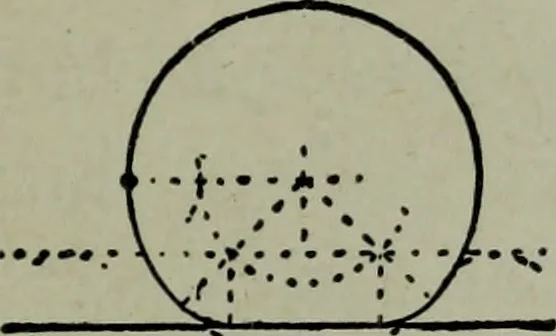

e same principle as Figs. 50 and 51. Fig. 53 shows a straight line cutting a circle ARCHITECTURAL DRAWING SELF TAUGHT 67 and joined by small curves on the inside. Afterdrawing the circle and straight line, take therequired radius of connecting curve and draw ashort arc on the inside of large… … Fig. 53- Fig- 54- of this parallel line with the large arc will givethe centers for the connecting curves. Fig. 54 shows two given parallel straight lineswhich are to be joined by an ogee or reversedcurve. Select a point on one of the lines fromwhich the curves may start, draw a horizontalline and…
