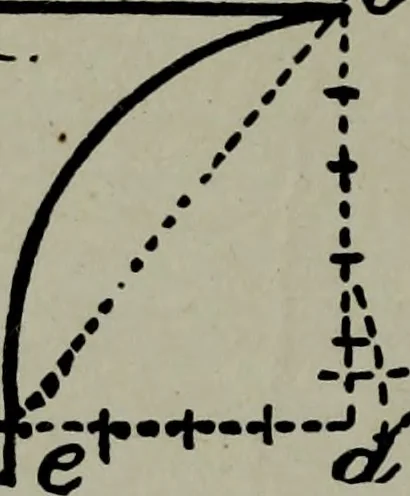

Fig. 63. 74 ARCHITECTURAL DRAWING SELF TAUGHT ■i^.„. ht*-^-ik … Fig. 64. Another method of describing this moulding isshown at Fig. 64. ad and cd, are the two lines,divide the perpendicular into five equal parts, make de equal toix^ j^ five of these and proceed as in thelast example. The next exam-ple is the cymarecta moulding.This is consideredthe most…
