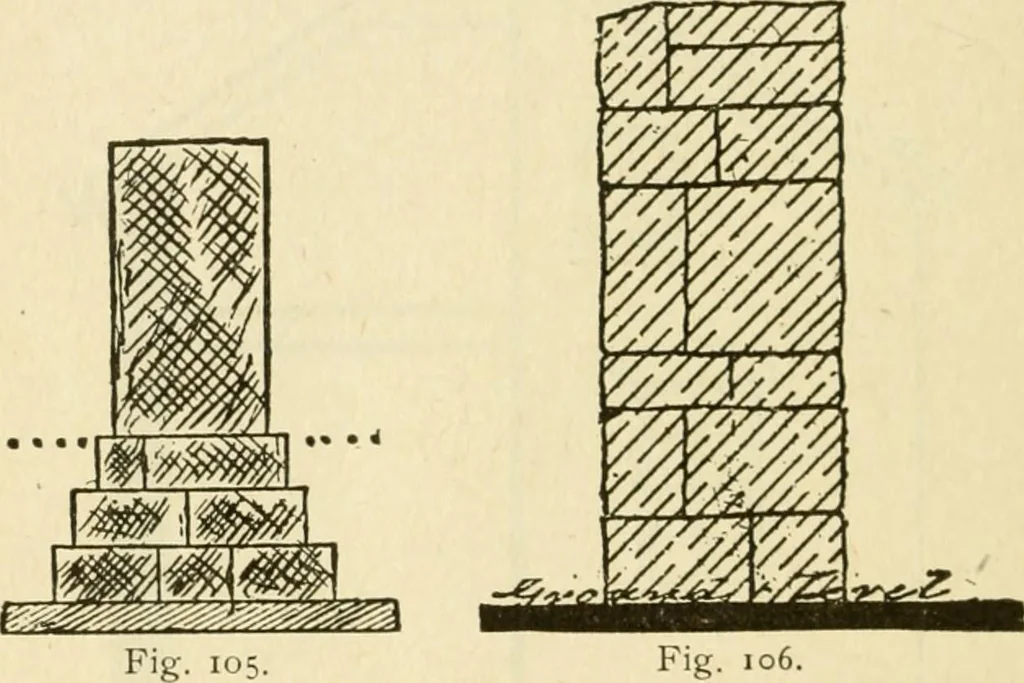

under the stairs asshown in this plan. The projections shown atthe doors are steps. 114 ARCHITECTURAL DRAWING SELF TAUGHT The plan shown at Fig. 102 is for the atticstory. A part of the height of this will run upinto the roof as will be shown in section Fig. 104.Here the chimneys take another shape… … Fig. 106. winders. The windows are not so wide as thosein the stories below, only being 2 ft. 3 in. in theopenings. Measure off the rooms as they arefigured, making the partitions of 2x4 in. studs,and marking off the newel and rail for stairs asshown. The.elevation shown at Fig. 103 requires…
