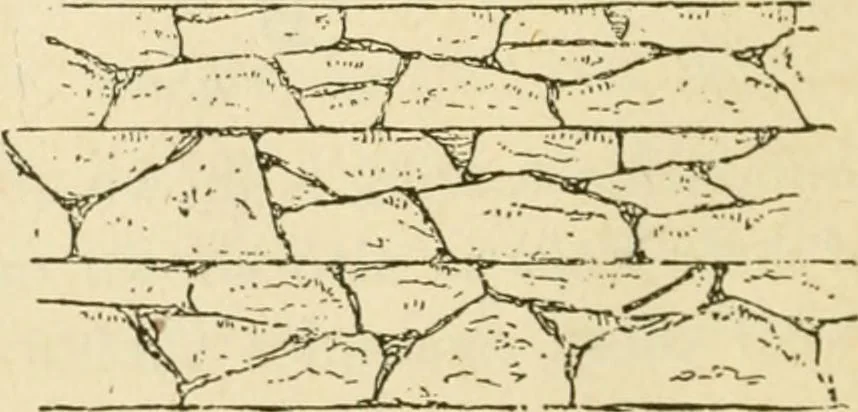

Fig. 108. mences. The dottedlines show the top ofcellar floor whether it be plank or cement. Whenthe whole foundation and wall are to be of stone,the student may lay it off in accordance with the class of ma- soury employed. < ■ ^ -- One method ofshowing squarerubble work ina wall, is exhib- 1… … ARCHITECTURAL DRAWING SELF TAUGHT IIT In this style of masonry, the wall is brought to alevel throughout its length at about every 12 or14 inches, in height, so as to form courses ofthat depth. This wall is built of stones roughfrom the quarry, regardless of size or shape. Another st^^le of masonry…
