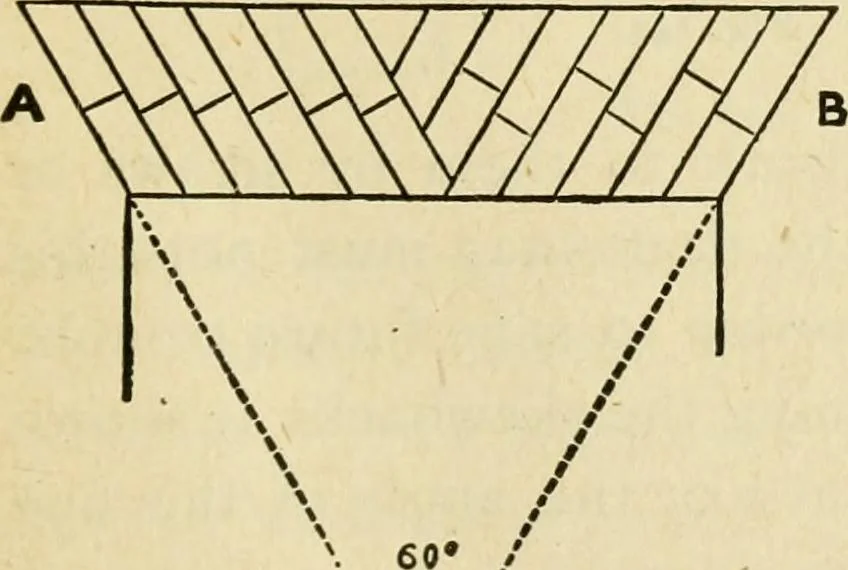

triangle, as shown on Fig. 142..The joints give a better appearance whenhorizontal as at B, Fig. 141; but to save laborthey are frequently formed as at A, and care-fully concealed by rubbing over, false horizontaljoints being marked on the face, though in course of timethe true jointsare sure to… … U2 ARCHITECTURAL DRAWING SELF TAUGHT are unreliable, and the draftsman should nevermake them if intended to be built, unless theyare to be built up in good Portland cementmortar. The joints may be arranged as shownat A or at B; if, as at A, only whole bricks shouldbe used. Sometimes, in building…
