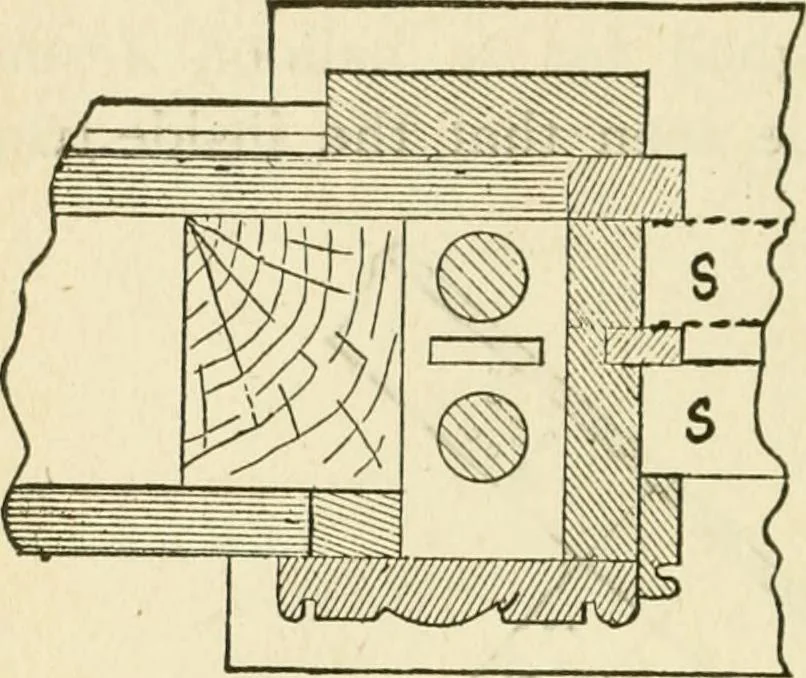

Fig. 163. forms one side of the box. This is an exceed-ingly cheap way to make a frame as but verylittle stuff is required in its construction. The section of window frame shown in Fig.165 exhibits the portion cut at the sill. This 1G2 ARCHITECTURAL DRAWING SELF TAUGHT … Fig. 164. shows the construction of the frame at thebottom, including inside and outside finish. It will be in ordernow to follow theplates I have pre-pared, In which alarge number ofconstructive de-tails are presented.I would advise thatthe student copyeach item as pre-sented, makingeach one twice…
