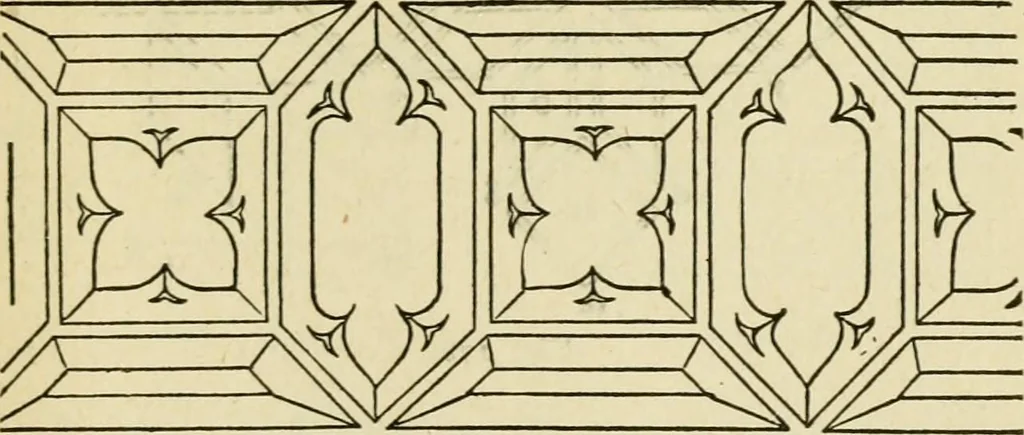

her illustration of a square being set diagonally is shown at Fig. 174, which illustrates ARCHITECTURAL DRAWING SELF TAUGHT 167 an open balustrade in Gothic style. The studentshould have no difficutly whatever in laying thisdiagram off, as it is a very simple matter. Figs. 175 and 176 show another… … Fig. 177. The same figure in conjunction with the squareis shown in finished work at Fig. 177. Thisrepresents a perforated balustrade or parapet;the curved lines are obtained by the compass,centers being easil}- found. 168 ARCHITECTURAL DRAWING SELF TAUGHT A Still more complicated figure is shown…
