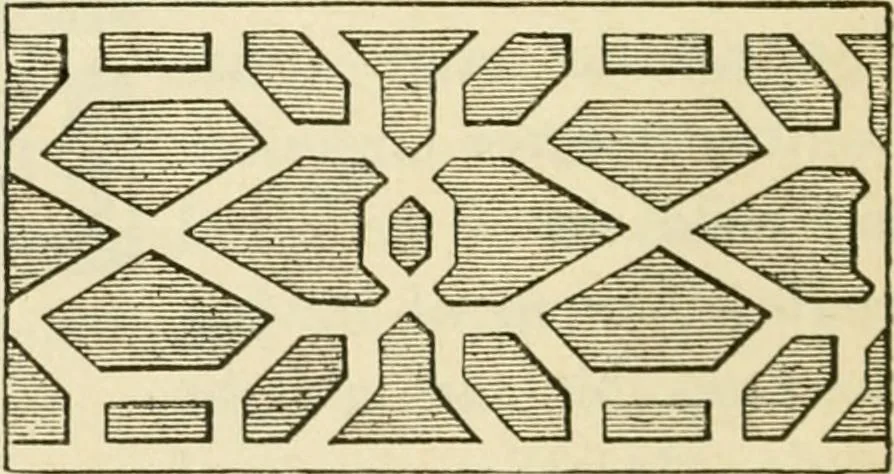

ts con-struction is very simple and easy, and may be reproduced with aT and set squaresalone. Fig. 185 isconstructed nearlyin the same man-ner, there beingtwo more anglesin the latter than the former. The next fret isa little more difficult to lay off, but I appre-hend the student will have no… … Fig. 187 nation will prove quite easy, though some littletrouble and care will be experienced in formingthe first complete figure as shown. At Fig. 188 a very different kind of fret is ARCHITECTURAL DRAWING SELF TAUGHT 178 € e 1 shown. This is composed of different figures, ase e forms a complete…
