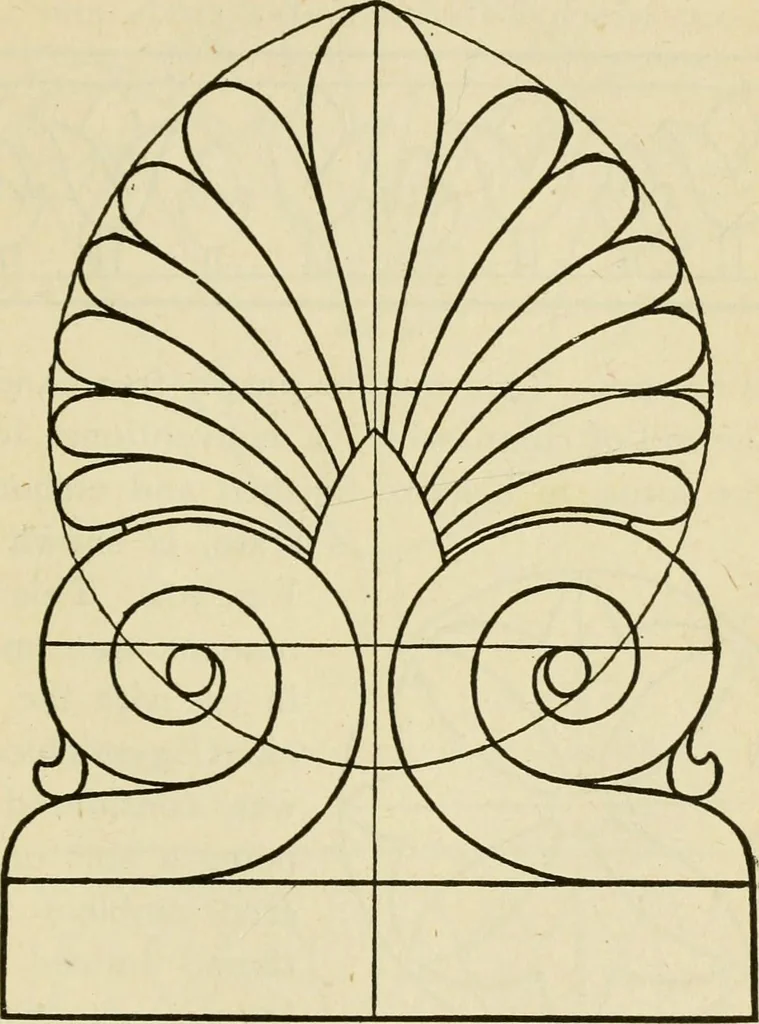

Fig. 204. be turned in a lathe and then split in two orquartered. Fig. 204 shows the Greek conventional lilyform. It has a faint resemblance to theEgyptian lotus, but has a Grecian delicacyabout it that is absent in Egyptian forms. The ornament shown in Fig. 205 is the Greek ARCHITECTURAL DRAWING… … Fig. 205. The border shown at Fig. 206 is purelyEgyptian, and is partly made up of the openlotus flower and the bud. This is a very 186 ARCHITECTURAL DRAWING SELF TAUGHT common ornament for stenciling, incised workand low relief carving. A circular or rosette ornament is shown atFig. 207 which is…
