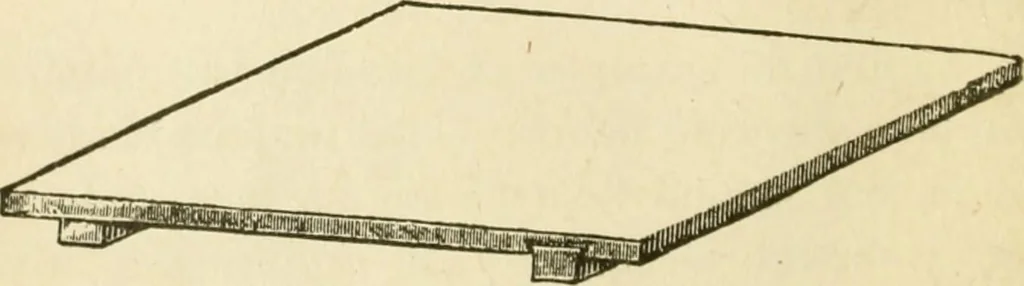

They may be clamped on the ends with stuffabout i^ inches wide and the thickness of theboard, or they maybe held together with battenseither screwed on to the underside as shown at … Fig. 2. Fig. I, or dovetailed into the board across thegrain as shown a^ rig. 2. At Fig. 3 a much
