Builders' architectural drawing self-taught : containing descriptions of drawing instruments and accessories, with rules for using them, and hints as to their care and management ... (1917)
Hodgson, Fred. T. (Frederick Thomas), 1836-1919, Frederick J. Drake & Co · Chicago, F. J. Drake · leaf 238

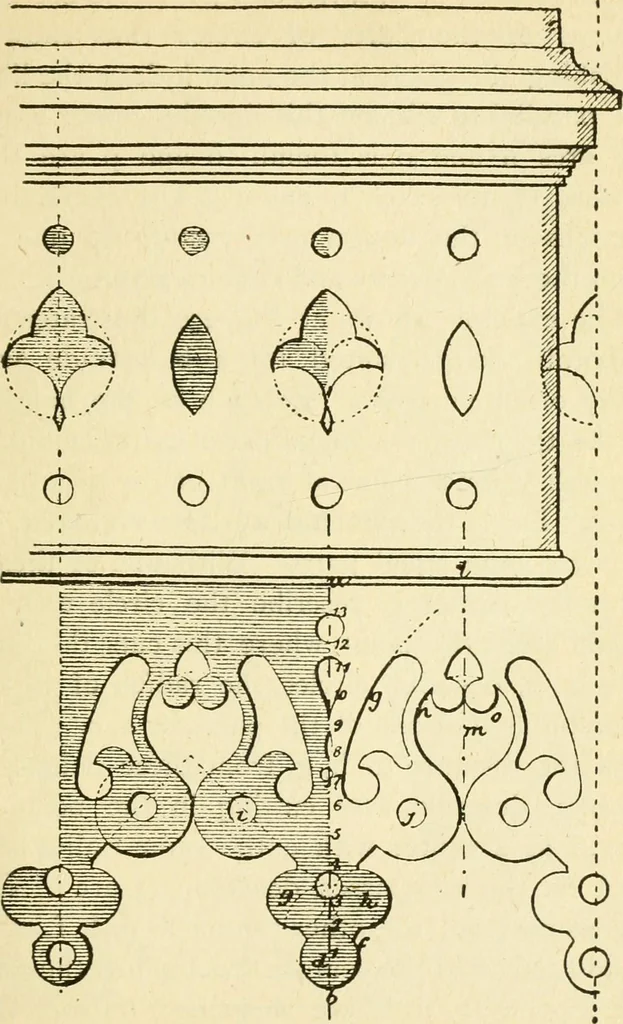

rom the point 2, draw lines at an angle of 45°to the line c f, cutting the semicircle; thesejoints, as g and h, give the centers of the semi-circles. From one center of the circle describedj&etween the points 3 and 4 draw lines at right 208 ABCHITECTUEAL DRAWING SELF TAUGHT PLATE 13. Plate 13… … Fig. 229. 210 ARCHITECTURAL DRAWING SELF TAUGHT angles to the line e, f, to i and j. These are thecenters of the parts of circles thus shown.Finishing the circle at the point k draw the linek, 1, parallel to a b; on this line the center m, ofthe arcs n and o, is found. 6 and p are thecenters of the…
Architectural drawing · Architecture, Domestic
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
