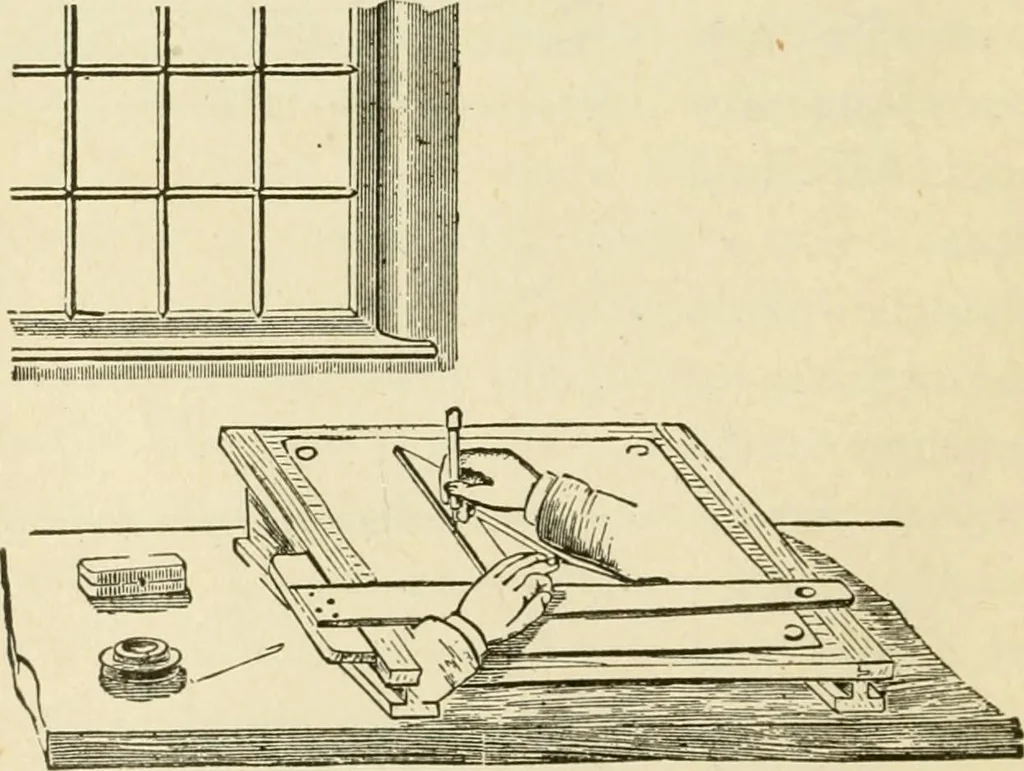

//)!///>///))///////y///-/^^y J y//^^ v/ /^ ^ig. 6. 24 ARCHITECTURAL DRAWING SELF TAUGHT Having prepared a drawing board, the nextthing will be to provide a table or desk to restthe board on. I show a very good scheme forthis purpose in sketch Fig. 6, and which canreadily be made by any workman… … Fig. 7. projection of the table ot desk are marked inFig. 6, and a movable block of about 3 inchessquare is shown at A, which can be moved insuch a fashion that the angle of the board may ARGHITECTURAL DRAWING SELF TAUGHT 25 be made to suit the operator. This block mustof course be as long as the…
