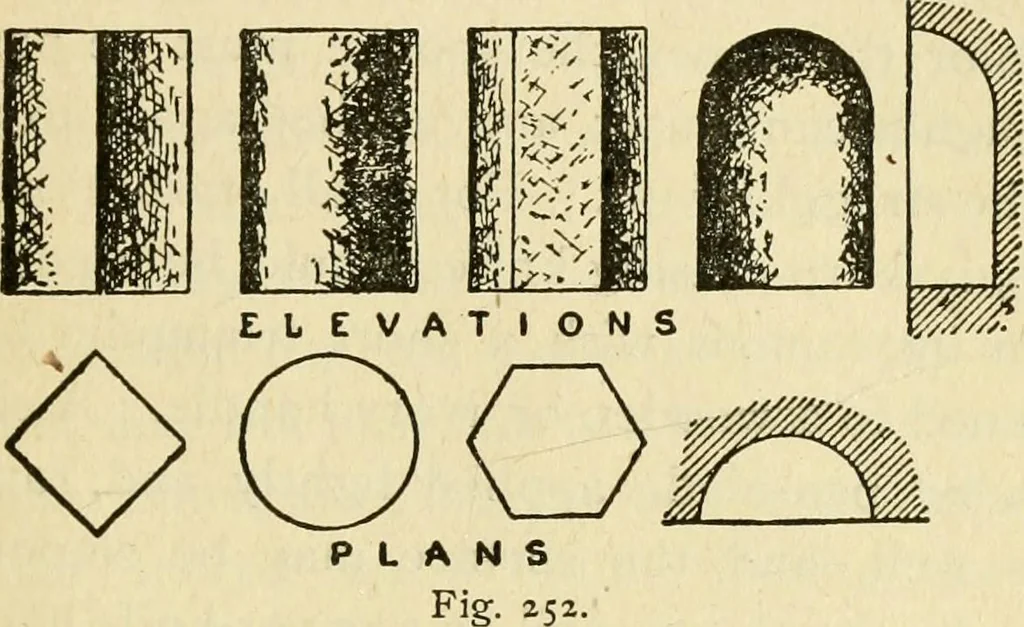

, showing how someobjects maybe shaded even by an inexperiencedhand. The principles of shading are verysimple, but do not seem to be generally under-stood, even by architects. All the exhibitiondrawings of an Architectural Association were ARCHITECTTIRAL DEAWTNTG SELF TAUGHT 259 spoilt one year by… … and vice versa; (2) for the sake of uniformitythe light is usually supposed to come from theleft, and on a drawing is generally taken ascoming down the long side of a 45° set square,when one edge is placed diagonally on the paperand at right angles to it; (3) on inclined surfacein the light the…
