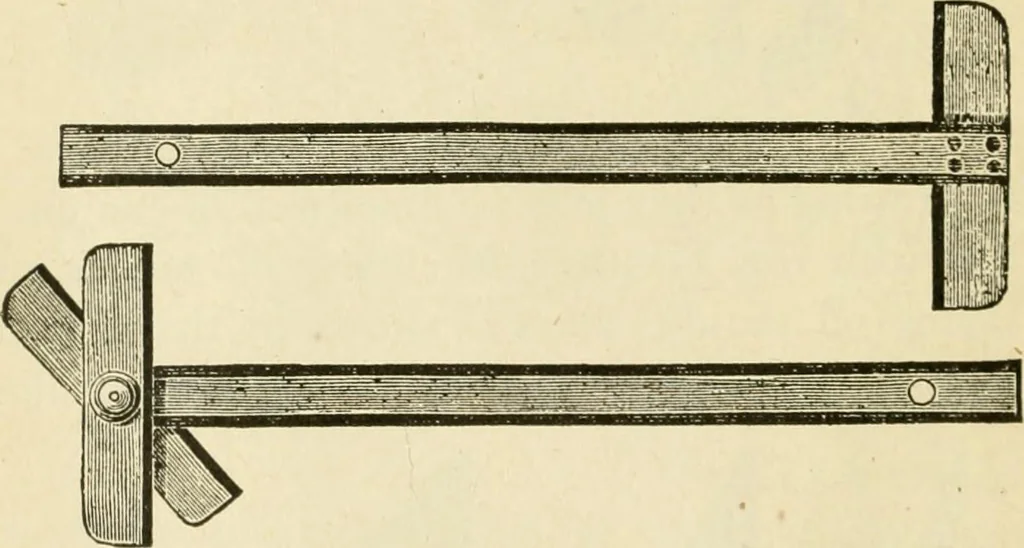

Fig. II. to suit different angles, and in many styles,as will be seen in Fig. 11. The manner of 28 ARCHITECTURAL DRAWING SELF TAUGHT using them will suggest itself as the work pro-ceeds. T-squares of a superior kind may be obtainedfrom any dealer in mathematical instrumentsfor from $i.oo to $6.00… … Fig. 12. of the stocks having ebony or other hard woodglued on the edges to prevent them from wear-ing. The lower square has a movable stock,which is operated by a thumb screw, thusenabling the draftsman to set the blade to anyangle desired. The working of this will beeasily understood by the…
