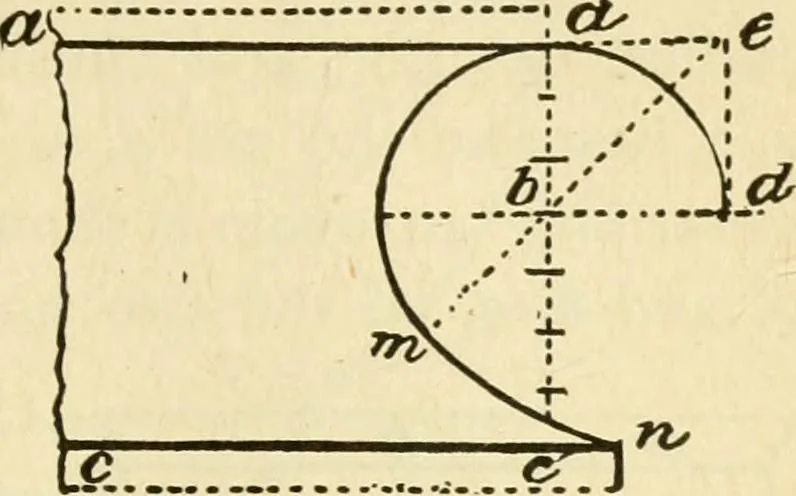

ill \<^ always be in vogue *:.*• and it is but fitting Ilg. 55. the young studentand workman should know how to draw themcorrectly. The example shown at Fig. 55 is a Scotia or ARCHITECTURAL DRAWING SELF TAUGHT 69 cove and is drawn as follows: Divide a, b intothree equal parts; with ^ as a center… … Fig. 56. getting a deeper moulding. Let a, a, be the upper line and c, c, the lower; from a, drop a perpendic; ular to c, divide a, c, into seven equal parts; through the third of these, from a, draw a line _ parallel to a, a,from b, with b, a,draw the semicir-cle b, d, and fromd, draw to e,…
