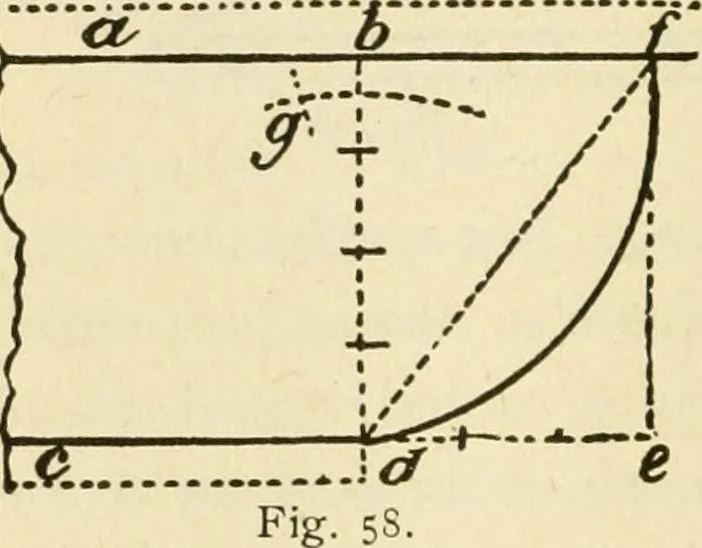

ctively, describe the arc, cutting at g, from which, as acenter, describe the arc, d,f. At Fig. 59 I show a moulding called aquirked ovolo. The projection in this case ismade equal to five-sevenths of its height, as seenby the divisions, and the radius of the circle <5, c, is made equal to two… … ARCHITECTURAL DRAWING SELF TAUGHT 71 ^, a, perpendicularly to ^, h, and make g, j\equal to the radius d, c, of the circle b, c\ joiny,
