The builder's dictionary, or, Gentleman and architect's companion : explaining not only the terms of art in all the several parts of architecture, but also containing the theory and practice of the various branches thereof ... : also necessary problems in arithmetic, geometry, mechanics, perspective, hydraulics, and other mathematical sciences : together with the quantities proportions, and prices of all kinds of materials used in building ... (1734)
Toms, W. H. (William Henry), ca. 1700-ca. 1750, Devoto, John, fl. 1719-1752 · London : Printed for A. Bettesworth and C. Hitch ..., and S. Austen ... · leaf 36

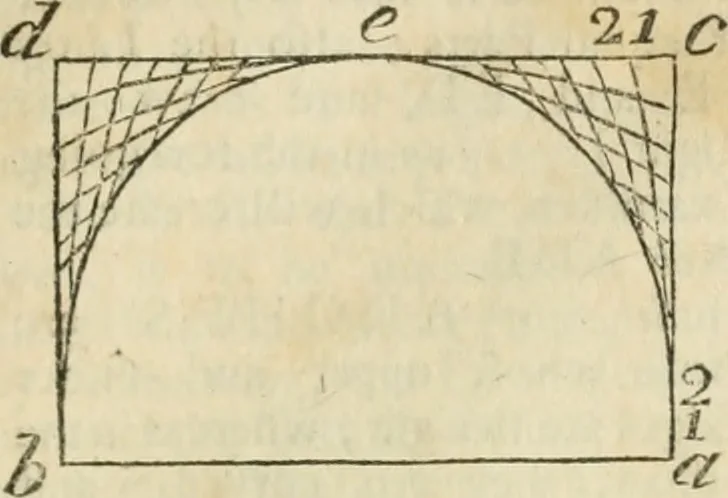

tis thofe onwhich the Feet of the Arches divide into two equal Parts at E;then divide AC and BD intoany Number of equal Parts; al-fo CE and ED into the fameNumber of equal Parts, anddraw Right Lines to each cor-refpondcnt Divilion, as from i (land,the Height orThicknefs of to i, from 2 to 2, and fo… … Firft draw the Eafe Line ABthen draw the Line CD parallel and equal to the Line A B, andlo far diitaiit as you delign thejlrch iliall rife, and draw theLines CA and DB; then divideCAand DB into any Numberot equal Parts, alio C E and EDinto the fame Number of equalParts, and draw Ri^ht Lines toeach…
Architecture · Building
Internet Archive · Getty Research Institute · Public Domain Mark 1.0. Free to use for anything.
