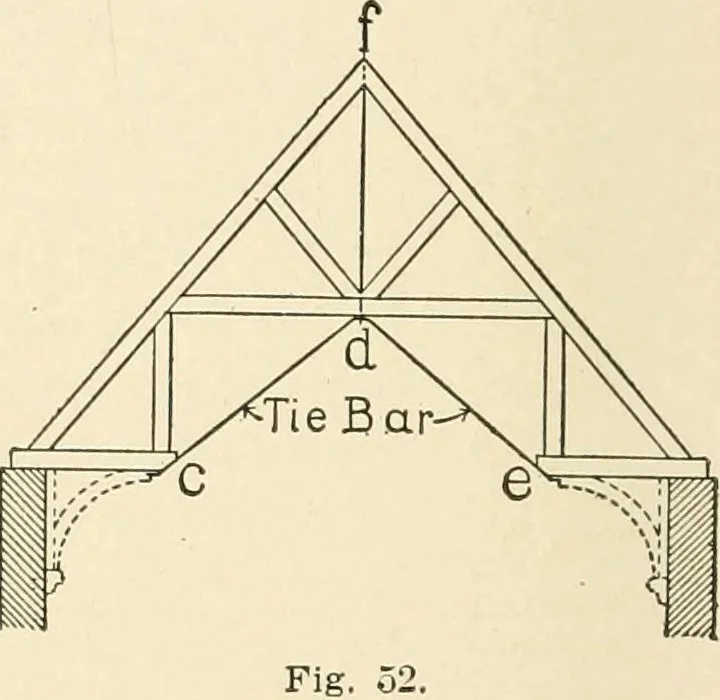

Fig. 51. … In the first case a brace beneath the hammer-beam is absolutelynecessary; in the second it is not. In practice the inclined tie-bars, shown in Fig. 52, are quite im-possible, as they would spoil the desired effect, and it would be bet-ter to use a different type of truss. A straight wooden fie…
