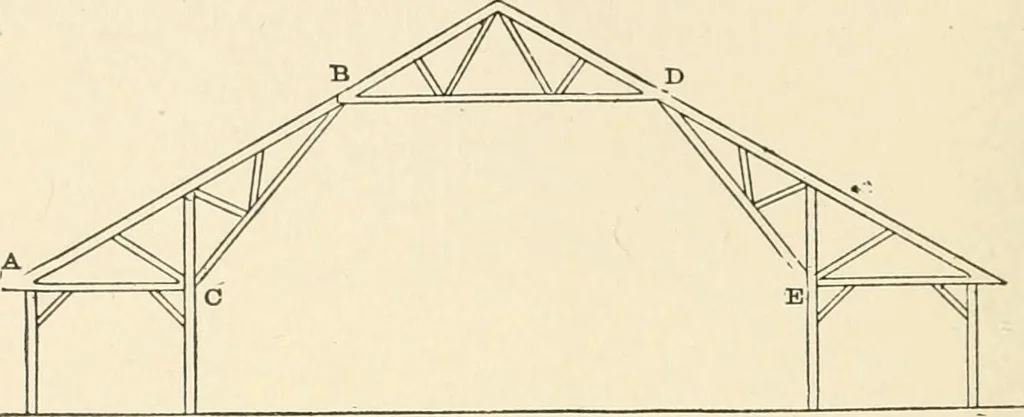

52 BUILDING CONSTRUCTION. 27. CANTILEVER TRUSSES.—Although cantilever trussesof wood are not often used, conditions sometimes exist, as in thecase of a wide centre-span with shorter spans on each side, where … Fig. 62. a cantilever truss will meet the requirements better than any othertype. Fig. 62 shows a simple cantilever trussed roof, suggested by Mr.John Beverly Robinson in an article advocating the use of the can-tilever in building construction, published in the Engineering
