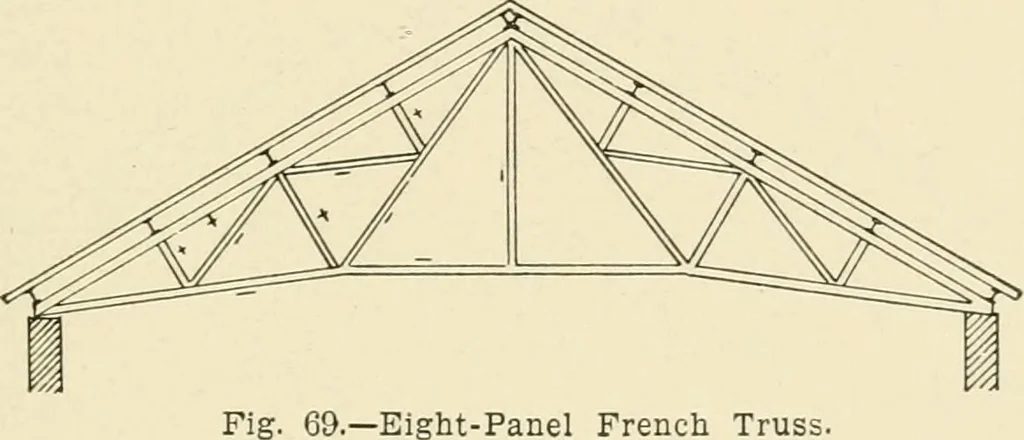

Fig. 68.—Compound Fink Truss. … Eight-Panel French Truss. clination of the rafter is less than one-fourth pitch, on account ofthe great length of the inner struts. Although Fig. 71 somewhat resembles the Queen truss. Fig. 12,it will be seen that the diagonals run in the opposite direction, thediagonals in Fig. 71 being in…
