Kidder, Frank E. (Frank Eugene), 1859-1905, Nolan, Thomas, 1857-1926 · New York : W.T. Comstock · leaf 128

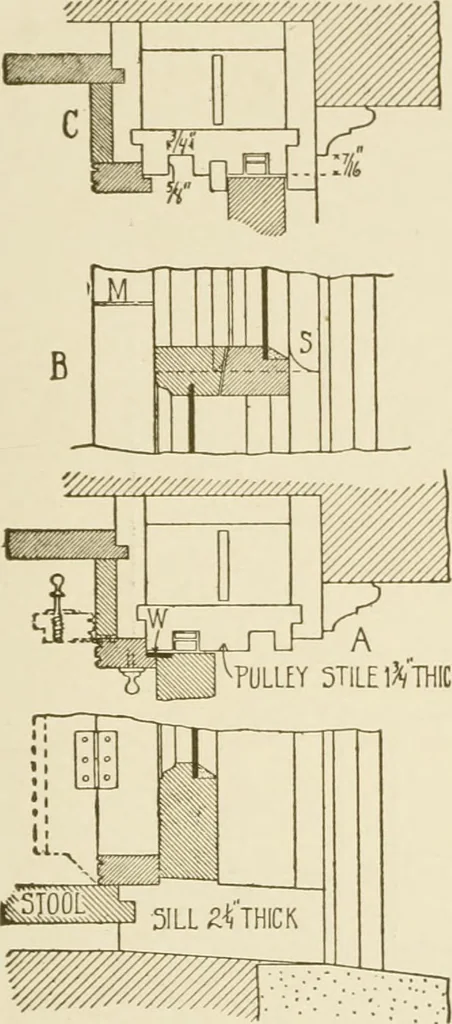

sill comingnearly to the floor, they are frequently termed French windows. It is very difficult, and in fact almost impossible, to construct acasement window so that the rain cannot beat in, unless the sash arehung to swing out; and if the sash open outward it is impracticableto use outside fly… … Fig. 107. 126 B UILDING CONS TR UC Tl ON. that of a door frame, the difference being in the arrangement of thewood sill and in the rebate for the sash. Fig. io8 represents a section through the jamb, sill and meetingstiles of a casement window in which the sash are to swing out, show-ing the…
Building
