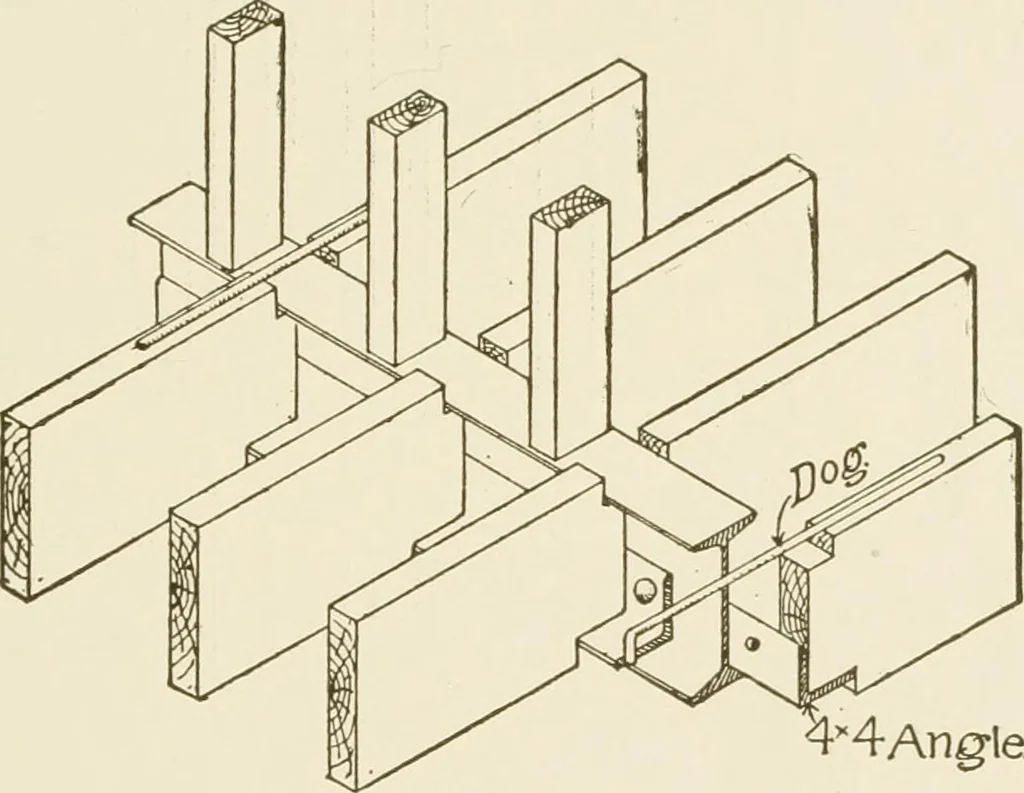

beams or brick walls. If the first story parti-tion supports ar )ther in the second story, the beam must, of course,have sufficient strength and stiffness to support all the partitionsabove it without undue deflection. It is also desirable, in brick buildings at least, to support the par-titions… … 4 Angle. Fig. 63. partition head below, so as to give a nailing for the laths and toprevent cracks in the plastering. It sometimes seems necessary to support part of a second storypartition on a partition cap and part on the floor joist, but this cangenerally be avoided by using the plates shown in…
