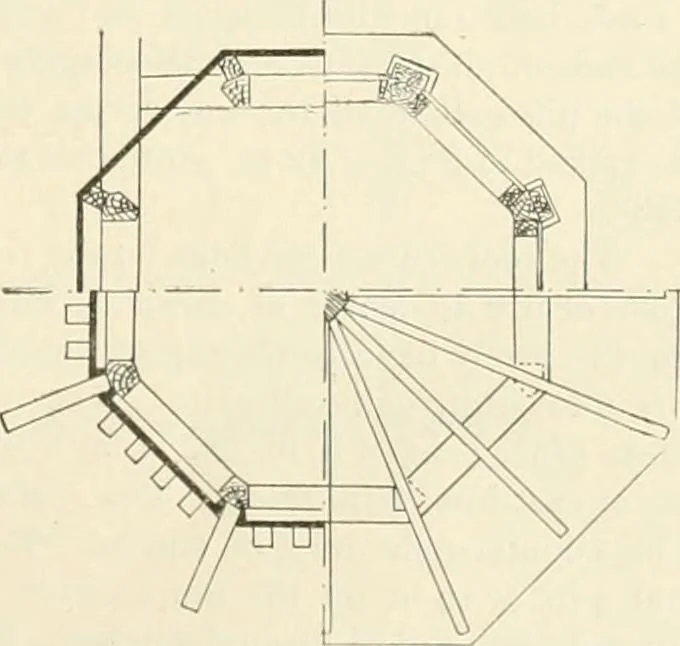

Fig. 312.—Gknf.rai. Plan. … Fig. 314.—Ground-plan of Ventilator. with combination roof-trusses and slate roof. The outside diameter of the house is 320 ft., the innerdiameter is 168 ft. 6 in., and the diameter of the turn-table pit is 60 ft. The width of the house is,therefore, 75 ft. 9 in., and the space between the…
