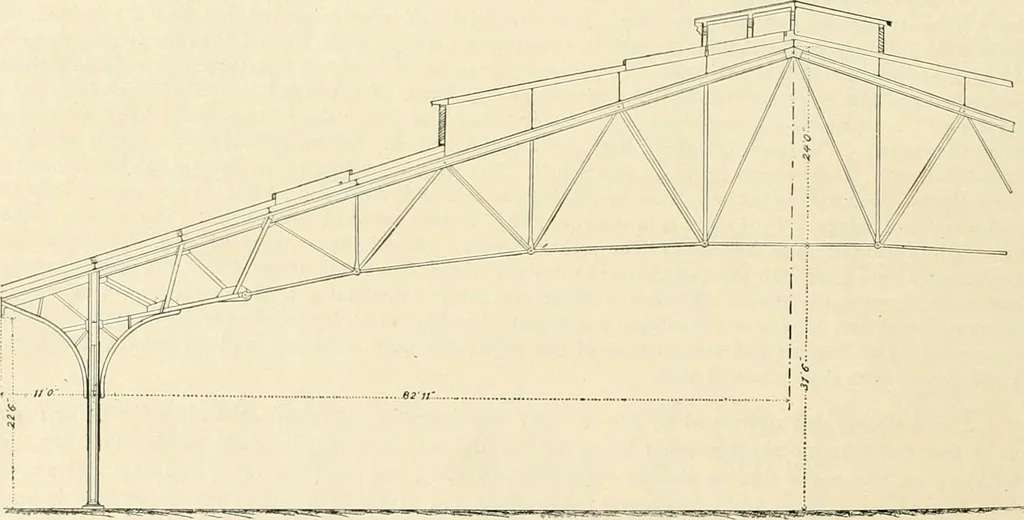

Fig. 674.—Side Elevation of HEAD-Hr>iM and Tuain-shed. … Fig. 675. -Cross-section of Train-shed. Foundations. — Foundations along south side and the two at N. E. corner are on piles. End piers havesi.x piles and intermediate ones nine ; largest foundation at N. E. corner of building has twelve piles. Allpiles were cut off at about 6 ft. 6 in. below…
