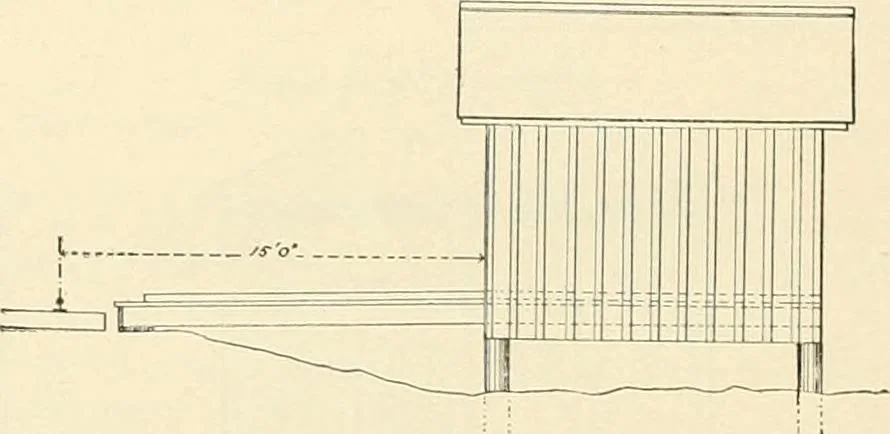

Fig. 36.—Front Elevaiiox and Cross-seciion. Fig. 37.—Side Elevation. The principal sizes used are as follows: sills, 6 in. X 6 in.; floor-joists, 4 in. X 8 in., spaced 27in. between centres, spanning 12 ft.; plates, 2 in. X 4 in., upright; rafters, 2 in. X 4 in.; floor, 2 in.;joists under platform,…
