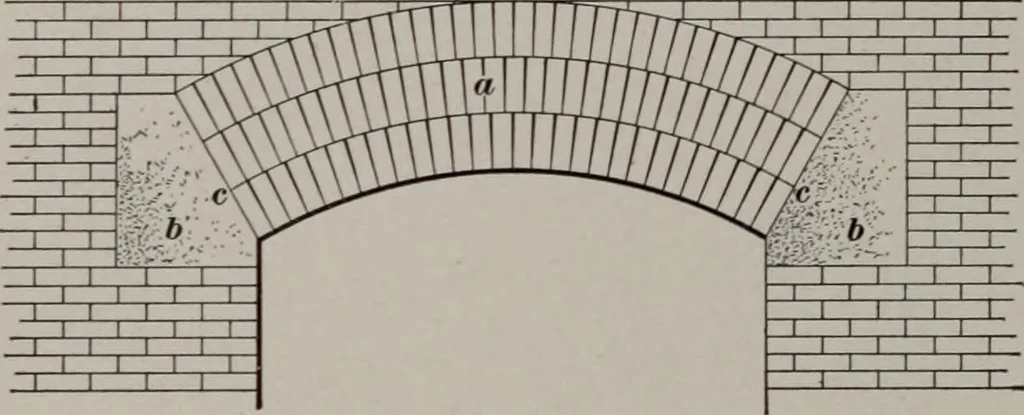

Fig. 17 is illustrated an arch of molded bricksthat is used in the interior of the same building. This archis 9 feet and ^ inch span. Being an elliptic arch, it takes lessheadroom than would a circular arch. Although the arch inquestion was actually built with the intrados forming a per-fect… … Fig.18 this arch is that the intrados curve is less than a semicircle,thus making an angle with the line of the abutment instead ofbeing tangent to it. It is a three-rowlock arch constructedentirely of common bricks laid as stretchers. This form ofarch, unless bonded back into the rear wall with…
